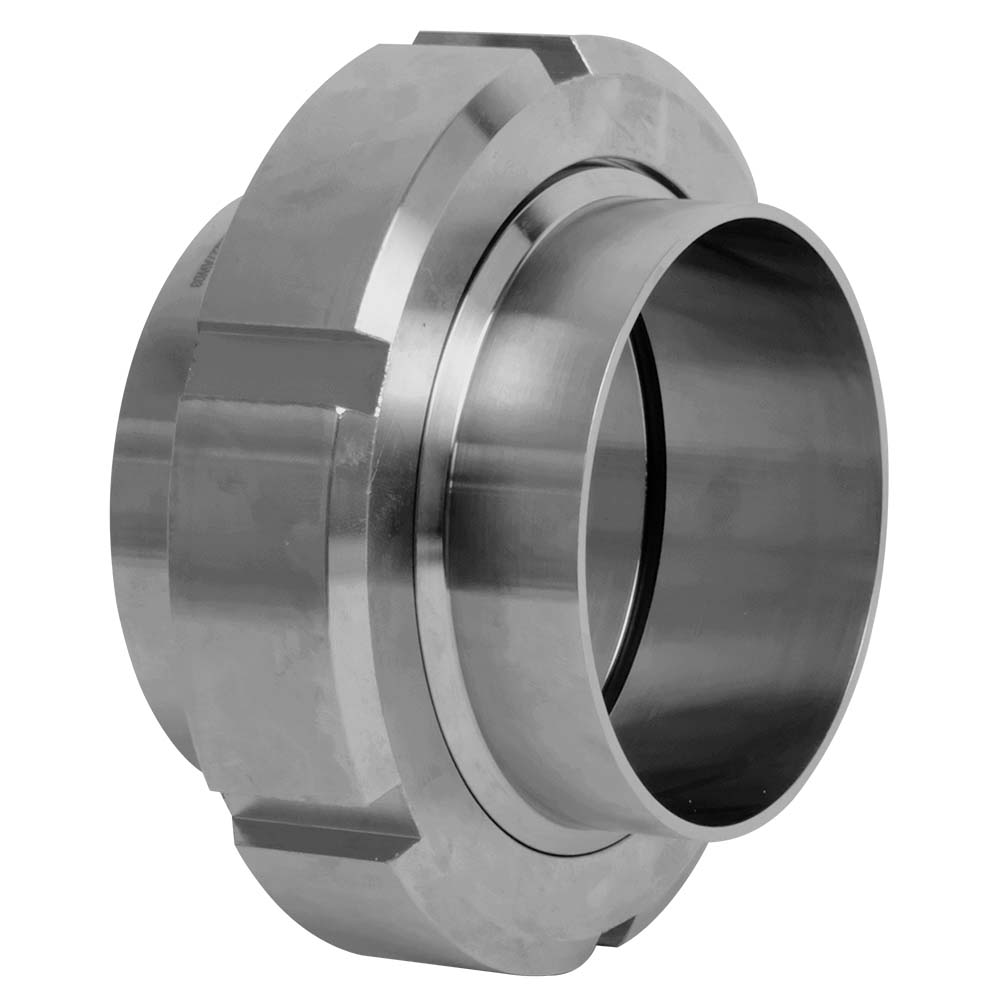

Aseptic Dairy Union DN50
DIN11853-1 (Form A) - EHEDG
for Tube diam. 53,0 x 1,5mm
Mat. 1.4404 (316L) - Ra<0.8µm
Nut in 1.4301 (AISI 304)
EPDM O-ring gasket (FDA)
| DN | A | B | C | D | Article316 EPDM | |
| DN10 | 32.0 | 13.0 | 38.0 | 108010103300 | ||
| DN15 | 32.0 | 19.0 | 44.0 | 108010153300 | ||
| DN20 | 34.0 | 23.0 | 54.0 | 108010203300 | ||
| DN25 | 42.0 | 29.0 | 63.0 | 108010253300 | ||
| DN32 | 48.0 | 35.0 | 70.0 | 108010323300 | ||
| DN40 | 50.0 | 41.0 | 78.0 | 108010403300 | ||
| DN50 | 54.0 | 53.0 | 92.0 | 108010503300 | ||
| DN65 | 62.0 | 70.0 | 112.0 | 108010653300 | ||
| DN80 | 72.0 | 85.0 | 127.0 | 108010803300 | ||
| DN100 | 86.0 | 104.0 | 148.0 | 108011003300 |
Aseptic Dairy Union DN50
DIN11853-1 (Form A) - EHEDG
for Tube diam. 53,0 x 1,5mm
Mat. 1.4404 (316L) - Ra<0.8µm
Nut in 1.4301 (AISI 304)
EPDM O-ring gasket (FDA)
