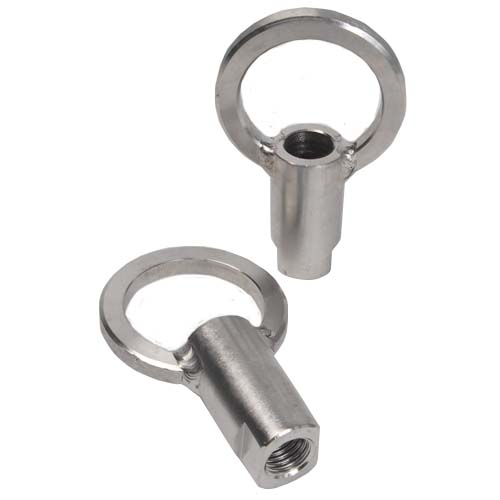

Ring nut M16
Material 316TI (1.4571)
Ring inner diameter 50mm
Length 55mm nut
Total height approx 108mm.
Spanner size 21mm.
| DN | A | B | C | D | E | Article |
| M22 | 9421.103022 | |||||
| M16 | 9421.2016 | |||||
| M16 | 9421.200021 | |||||
| M16 | 9421.2022 | |||||
| M16 | M16 | 65 | SW21 | 9421.2022-A4 | ||
| M16 | 9421.2023-A4-M16 | |||||
| M12 | 9421.2023-M12 | |||||
| M16 | 9421.2023-M16 | |||||
| M16 | 9421.2023-SP | |||||
| M16 | 73 | 40 | 12 | M16 | 9421.2024-M16 | |
| M12 | 9421.2031-M12 | |||||
| M12 | 9421.2031-M12B | |||||
| M16 | 9421.2031-M16 | |||||
| M16 | 9421.2031-M16B | |||||
| M16 | 66 | 50 | 35 | SW24 | M16 | 9421.2032-M16 |
| M16 | 66 | 50 | 40 | SW24 | M16 | 9421.2032-M16 A4 |
| M12 | 9421.3016 | |||||
| M12 | 9421.3022 | |||||
| M16 | M16 | 9421.3024 |
Ring nut M16
Material 316TI (1.4571)
Ring inner diameter 50mm
Length 55mm nut
Total height approx 108mm.
Spanner size 21mm.
