AWH Rotating Sprayball
Spray direction 360°
with 3/8" BSP inner thread
Material: 1.4435 (AISI 316L)
Ball diameter: 28,0mm
Total length: 60,0mm
| Art.no. 947.S |

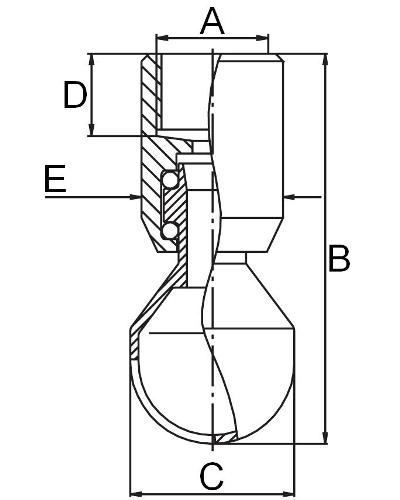

| Type | A | B | C | Spray | 360° | ||
| S20 | 1/8" BSP | 43.0 | 17.0 | 360° | 20 360GR G018 | ||
| S30 | 1/4" BSP | 60.0 | 28.0 | 360° | 30 360GR G014 | ||
| S30 | 3/8" BSP | 60.0 | 28.0 | 360° | 30 360GR G038 | 30 180D G038 | |
| S40 | 1/2" BSP | 93.0 | 39.0 | 360° | 40 360GR G012 | ||
| S40 | 3/4" BSP | 93.0 | 39.0 | 360° | 40 360GR G034 | 40 180D G034 | |
| S50 | 1.1/2" BSP | 158.0 | 69.5 | 360° | 50 360GR G112 | 50 180D G112 |
AWH Rotating Sprayball
Spray direction 360°
with 3/8" BSP inner thread
Material: 1.4435 (AISI 316L)
Ball diameter: 28,0mm
Total length: 60,0mm
