Please note: When ordering longitudinal material, transport costs will be calculated afterwards.

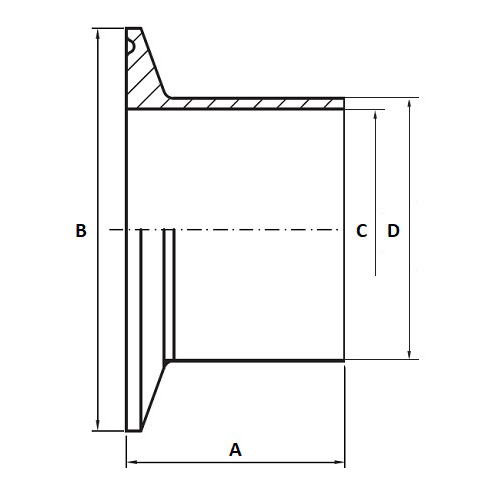

| DN | A | B | C | D | E | ArticlePN16 |
| ½" | 44.5 | 12.7 | 9.40 | 25.0 | Ra<0,5µm | B184920123 |
| ¼" | 44.5 | 6.35 | 4.57 | 25.0 | Ra<0,5µm | B184920143 |
| ¾" | 44.5 | 19.10 | 15.80 | 25.0 | Ra<0,5µm | B184920343 |
| ⅜" | 44.5 | 9.53 | 7.75 | 25.0 | Ra<0,5µm | B184920383 |
| 1" | 44.5 | 24.4 | 21.1 | 50.4 | Ra<0,5µm | B184921003 |
| 1½" | 44.5 | 38.1 | 34.8 | 50.4 | Ra<0,5µm | B184921123 |
| 2" | 57.2 | 50.8 | 47.5 | 63.9 | Ra<0,5µm | B184922003 |
| 2½" | 57.2 | 63.5 | 60.2 | 77.5 | Ra<0,5µm | B184922123 |
| 3" | 57.2 | 76.2 | 72.9 | 90.9 | Ra<0,5µm | B184923003 |
| 4" | 57.2 | 101.6 | 97.38 | 119.0 | Ra<0,5µm | B184924003 |
| 6" | 76.2 | 152.4 | 146.86 | 166.9 | Ra<0,5µm | B184926003 |
| Article | Description | DN | A | B | C | D | E | Order | |
| B184920123 | TC-Ferrule 12.70 x 1.65 L=44.5 SF1 | ½" | 44.5 | 12.7 | 9.40 | 25.0 | Ra<0,5µm | ||
DN ½" A 44.5 B 12.7 C 9.40 D 25.0 E Ra<0,5µm ASME BPE Ferrule 1/2" | |||||||||
| B184920143 | TC-Ferrule 6.35 x 0.89 L=44.5 SF1 | ¼" | 44.5 | 6.35 | 4.57 | 25.0 | Ra<0,5µm | ||
DN ¼" A 44.5 B 6.35 C 4.57 D 25.0 E Ra<0,5µm ASME BPE Ferrule 1/4" | |||||||||
| B184920343 | TC-Ferrule 19.10 x 1.65 L=44.5 SF1 | ¾" | 44.5 | 19.10 | 15.80 | 25.0 | Ra<0,5µm | ||
DN ¾" A 44.5 B 19.10 C 15.80 D 25.0 E Ra<0,5µm ASME BPE Ferrule 3/4" | |||||||||
| B184920383 | TC-Ferrule 9.53 x 0.89 L=44.5 SF1 | ⅜" | 44.5 | 9.53 | 7.75 | 25.0 | Ra<0,5µm | ||
DN ⅜" A 44.5 B 9.53 C 7.75 D 25.0 E Ra<0,5µm ASME BPE Ferrule 3/8" | |||||||||
| B184921003 | TC-Ferrule 25.40 x 1.65 L=44.5 SF1 | 1" | 44.5 | 24.4 | 21.1 | 50.4 | Ra<0,5µm | ||
DN 1" A 44.5 B 24.4 C 21.1 D 50.4 E Ra<0,5µm ASME BPE Ferrule 1" | |||||||||
| B184921123 | TC-Ferrule 38.10 x 1.65 L=44.5 SF1 | 1½" | 44.5 | 38.1 | 34.8 | 50.4 | Ra<0,5µm | ||
DN 1½" A 44.5 B 38.1 C 34.8 D 50.4 E Ra<0,5µm ASME BPE Ferrule 1 1/2" | |||||||||
| B184922003 | TC-Ferrule 50.80 x 1.65 L=57.2 SF1 | 2" | 57.2 | 50.8 | 47.5 | 63.9 | Ra<0,5µm | ||
DN 2" A 57.2 B 50.8 C 47.5 D 63.9 E Ra<0,5µm ASME BPE Ferrule 2" | |||||||||
| B184922123 | TC-Ferrule 63.50 x 1.65 L=57.2 SF1 | 2½" | 57.2 | 63.5 | 60.2 | 77.5 | Ra<0,5µm | ||
DN 2½" A 57.2 B 63.5 C 60.2 D 77.5 E Ra<0,5µm ASME BPE Ferrule 2 1/2" | |||||||||
| B184923003 | TC-Ferrule 76.20 x 1.65 L=57.2 SF1 | 3" | 57.2 | 76.2 | 72.9 | 90.9 | Ra<0,5µm | ||
DN 3" A 57.2 B 76.2 C 72.9 D 90.9 E Ra<0,5µm ASME BPE Ferrule 3" | |||||||||
| B184924003 | TC-Ferrule 101.60 x 2.11 L=57.2 SF1 | 4" | 57.2 | 101.6 | 97.38 | 119.0 | Ra<0,5µm | ||
DN 4" A 57.2 B 101.6 C 97.38 D 119.0 E Ra<0,5µm ASME BPE Ferrule 4" | |||||||||
| B184926003 | TC-Ferrule 152.40 x 2.77 L=76.2 SF1 | 6" | 76.2 | 152.4 | 146.86 | 166.9 | Ra<0,5µm | ||
DN 6" A 76.2 B 152.4 C 146.86 D 166.9 E Ra<0,5µm ASME BPE Ferrule 6" | |||||||||
