Properties

Brand

M&S Equipment

Connection

Between flanges

Operation

Pneumatic with TOP

Implementation

Air-opening / spring-closing (NC)

Field of application

Food & Chemistry

Maximum pressure DN15 - DN150

10 bar

Material

1.4301 (304) and 1.4404 (316L)

Gaskets

EPDM, HNBR, VMQ (silicone) and FKM (Viton)

Certification

EHEDG, 3.1 According to EN10204, FDA and EC1935/2004

Tabel

pdf download

102 results

12

per page

Previous

1

...

560041001160 Butterfly Valve SV04 1''/25,4
Connection: Between flanges
with welding ends 25,4 x 1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S 1'' F/F (04) 304P A/S+TOP

Article number

560041001160

Brand

M&S

Type

Tussen Flens

Diameter

1"

A

88

B

162

C

347

D

E

101,6

560041121160 Butterfly Valve SV04 1,5"/38,1
Connection: Between flanges
with welding ends 38,1 x 1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S 1,5" F/F (04) 304P A/S+TOP

Article number

560041121160

Brand

M&S

Type

Tussen Flens

Diameter

1½"

A

88

B

97

C

353

D

E

38,1

560042001160 Butterfly Valve SV04 2''/50,8
Connection: Between flanges
with welding ends 50,8 x 1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S 2" F/F (04) 304P A/S+TOP

Article number

560042001160

Brand

M&S

Type

Tussen Flens

Diameter

2"

A

88

B

110

C

359

D

E

50,8

560042121160 Butterfly Valve SV04 2,5"/63,5
Connection: Between flanges
with welding ends 63,5 x 1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S 2,5" F/F (04) 304P A/S+TOP

Article number

560042121160

Brand

M&S

Type

Tussen Flens

Diameter

2½"

A

88

B

127

C

367

D

E

63,5

560043001160 Butterfly Valve SV04 3''/76,2
Connection: Between flanges
with welding ends 76,2 x 1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S 3'' F/F (04) 304P A/S+TOP

Article number

560043001160

Brand

M&S

Type

Tussen Flens

Diameter

3"

A

88

B

142

C

375

D

E

76,1

560044001160 Butterfly Valve SV04 4''/101,6
Connection: Between flanges
with welding ends 101,6 x1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S 4'' F/F (04) 304P A/S+TOP

Article number

560044001160

Brand

M&S

Type

Tussen Flens

Diameter

4"

A

88

B

162

C

387

D

E

101,6

560400151160 M&S Butterfly Valve SV04 DN15
Conn.:Between Flanges 19,0x1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S DN15 F/F (04) 304P AS+TOP

Article number

560400151160

Brand

M&S

Type

Tussen Flens

Diameter

DN15

A

88

B

87

C

347

D

E

19

560400201160 M&S Butterfly Valve SV04 DN20
Conn.: Between Flanges 23,0x1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S DN20 F/F (04) 304P AS+TOP

Article number

560400201160

Brand

M&S

Type

Tussen Flens

Diameter

DN20

A

88

B

87

C

347

D

E

23

560400251160 M&S Butterfly Valve SV04 DN25
Conn.: Between Flanges 29,0x1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S DN25 F/F (04) 304P AS+TOP

Article number

560400251160

Brand

M&S

Type

Tussen Flens

Diameter

DN25

A

78

B

87

C

347

D

E

29

560400321160 M&S Butterfly Valve SV04 DN32
Conn.: Between Flanges 35,0x1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S DN32 F/F (04) 304P AS+TOP

Article number

560400321160

Brand

M&S

Type

Tussen Flens

Diameter

DN32

A

78

B

92

C

350

D

E

35

560400401160 M&S Butterfly Valve SV04 DN40
Conn.: Between Flanges 41x1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S DN40 F/F (04) 304P AS+TOP

Article number

560400401160

Brand

M&S

Type

Tussen Flens

Diameter

DN40

A

88

B

97

C

353

D

E

42

560400501160 M&S Butterfly Valve SV04 DN50
Conn.: Between Flanges 53,0x1,5mm
Mat.: 1.4301 (304) Polished
Pneumatic Actuator (NC)
Air open / Spring return
Incl. Control TOP with plastic
Cover, 1x Solenoid Valve (3/2)
10~36 VDC, and 2x PS (sensor)
Silicone gasket (FDA)

M&S DN50 F/F (04) 304P AS+TOP

Article number

560400501160

Brand

M&S

Type

Tussen Flens

Diameter

DN50

A

88

B

110

C

359

D

E

53

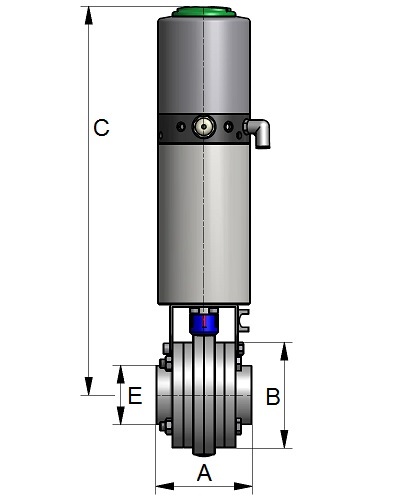

	Article	Description	DN	A	B	C	D	E	Order
	560041001160	M&S 1'' F/F (04) 304P A/S+TOP	1"	88	162	347		101,6
Additional features DN 1" A 88 B 162 C 347 D E 101,6 Description Butterfly Valve SV04 1''/25,4 Connection: Between flanges with welding ends 25,4 x 1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560041121160	M&S 1,5" F/F (04) 304P A/S+TOP	1½"	88	97	353		38,1
Additional features DN 1½" A 88 B 97 C 353 D E 38,1 Description Butterfly Valve SV04 1,5"/38,1 Connection: Between flanges with welding ends 38,1 x 1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560042001160	M&S 2" F/F (04) 304P A/S+TOP	2"	88	110	359		50,8
Additional features DN 2" A 88 B 110 C 359 D E 50,8 Description Butterfly Valve SV04 2''/50,8 Connection: Between flanges with welding ends 50,8 x 1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560042121160	M&S 2,5" F/F (04) 304P A/S+TOP	2½"	88	127	367		63,5
Additional features DN 2½" A 88 B 127 C 367 D E 63,5 Description Butterfly Valve SV04 2,5"/63,5 Connection: Between flanges with welding ends 63,5 x 1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560043001160	M&S 3'' F/F (04) 304P A/S+TOP	3"	88	142	375		76,1
Additional features DN 3" A 88 B 142 C 375 D E 76,1 Description Butterfly Valve SV04 3''/76,2 Connection: Between flanges with welding ends 76,2 x 1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560044001160	M&S 4'' F/F (04) 304P A/S+TOP	4"	88	162	387		101,6
Additional features DN 4" A 88 B 162 C 387 D E 101,6 Description Butterfly Valve SV04 4''/101,6 Connection: Between flanges with welding ends 101,6 x1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560400151160	M&S DN15 F/F (04) 304P AS+TOP	DN15	88	87	347		19
Additional features DN DN15 A 88 B 87 C 347 D E 19 Description M&S Butterfly Valve SV04 DN15 Conn.:Between Flanges 19,0x1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560400201160	M&S DN20 F/F (04) 304P AS+TOP	DN20	88	87	347		23
Additional features DN DN20 A 88 B 87 C 347 D E 23 Description M&S Butterfly Valve SV04 DN20 Conn.: Between Flanges 23,0x1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560400251160	M&S DN25 F/F (04) 304P AS+TOP	DN25	78	87	347		29
Additional features DN DN25 A 78 B 87 C 347 D E 29 Description M&S Butterfly Valve SV04 DN25 Conn.: Between Flanges 29,0x1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560400321160	M&S DN32 F/F (04) 304P AS+TOP	DN32	78	92	350		35
Additional features DN DN32 A 78 B 92 C 350 D E 35 Description M&S Butterfly Valve SV04 DN32 Conn.: Between Flanges 35,0x1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560400401160	M&S DN40 F/F (04) 304P AS+TOP	DN40	88	97	353		42
Additional features DN DN40 A 88 B 97 C 353 D E 42 Description M&S Butterfly Valve SV04 DN40 Conn.: Between Flanges 41x1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
	560400501160	M&S DN50 F/F (04) 304P AS+TOP	DN50	88	110	359		53
Additional features DN DN50 A 88 B 110 C 359 D E 53 Description M&S Butterfly Valve SV04 DN50 Conn.: Between Flanges 53,0x1,5mm Mat.: 1.4301 (304) Polished Pneumatic Actuator (NC) Air open / Spring return Incl. Control TOP with plastic Cover, 1x Solenoid Valve (3/2) 10~36 VDC, and 2x PS (sensor) Silicone gasket (FDA) more info »
