Please note: When ordering longitudinal material, transport costs will be calculated afterwards.

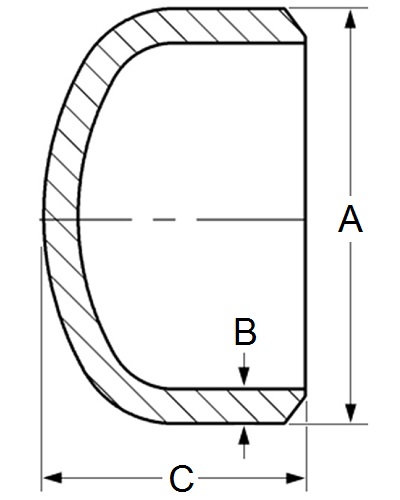

| DN | A | B | C | D | E | Article 316 | |
| ½" | 12.70 | 1.65 | 44.5 | 38.1 | B703012731 | ||
| ¾" | 19.05 | 1.65 | 46.0 | 38.1 | B703019131 | ||
| 1" | 25.40 | 1.65 | 47.6 | 38.1 | B703025431 | ||
| 1½" | 38.10 | 1.65 | 52.4 | 38.1 | B703038131 | ||
| 2" | 50.80 | 1.65 | 63.5 | 38.1 | B703050831 | ||
| 2½" | 63.50 | 1.65 | 71.4 | 38.1 | B703063531 | ||
| 3" | 76.2 | 1.65 | 73.0 | 44.5 | B703076231 | ||
| 4" | 101.6 | 2.11 | 82.6 | 50.8 | B703101631 | ||
| 6" | 152.4 | 2.77 | 120.7 | 63.5 | B703152431 |
| Article | Description | DN | A | B | C | D | E | Order | |
| B703012731 | Weld Cap 12.70 x 1.65 SF1 | ½" | 12.70 | 1.65 | 44.5 | 38.1 | |||
DN ½" A 12.70 B 1.65 C 44.5 D 38.1 E ASME BPE DT-4.1.5-1 (DT-30) | |||||||||
| B703019131 | Weld Cap 19.05 x 1.65 SF1 | ¾" | 19.05 | 1.65 | 46.0 | 38.1 | |||
DN ¾" A 19.05 B 1.65 C 46.0 D 38.1 E ASME BPE DT-4.1.5-1 (DT-30) | |||||||||
| B703025431 | Weld Cap 25.40 x 1.65 SF1 | 1" | 25.40 | 1.65 | 47.6 | 38.1 | |||
DN 1" A 25.40 B 1.65 C 47.6 D 38.1 E ASME BPE DT-4.1.5-1 (DT-30) | |||||||||
| B703038131 | Weld Cap 38.10 x 1.65 SF1 | 1½" | 38.10 | 1.65 | 52.4 | 38.1 | |||
DN 1½" A 38.10 B 1.65 C 52.4 D 38.1 E ASME BPE DT-4.1.5-1 (DT-30) | |||||||||
| B703050831 | Weld Cap 50.80 x 1.65 SF1 | 2" | 50.80 | 1.65 | 63.5 | 38.1 | |||
DN 2" A 50.80 B 1.65 C 63.5 D 38.1 E ASME BPE DT-4.1.5-1 (DT-30) | |||||||||
| B703063531 | Weld Cap 63.50 x 1.65 SF1 | 2½" | 63.50 | 1.65 | 71.4 | 38.1 | |||
DN 2½" A 63.50 B 1.65 C 71.4 D 38.1 E ASME BPE DT-4.1.5-1 (DT-30) | |||||||||
| B703076231 | Weld Cap 76.20 x 1.65 SF1 | 3" | 76.2 | 1.65 | 73.0 | 44.5 | |||
DN 3" A 76.2 B 1.65 C 73.0 D 44.5 E ASME BPE DT-4.1.5-1 (DT-30) | |||||||||
| B703101631 | Weld Cap 101.60 x 2.11 SF1 | 4" | 101.6 | 2.11 | 82.6 | 50.8 | |||
DN 4" A 101.6 B 2.11 C 82.6 D 50.8 E ASME BPE DT-4.1.5-1 (DT-30) | |||||||||
| B703152431 | Weld Cap 152.40 x 2.77 SF1 | 6" | 152.4 | 2.77 | 120.7 | 63.5 | |||
DN 6" A 152.4 B 2.77 C 120.7 D 63.5 E ASME BPE DT-4.1.5-1 (DT-30) | |||||||||
