Let op: Bij bestelling van lengtemateriaal worden de transportkosten achteraf berekend.

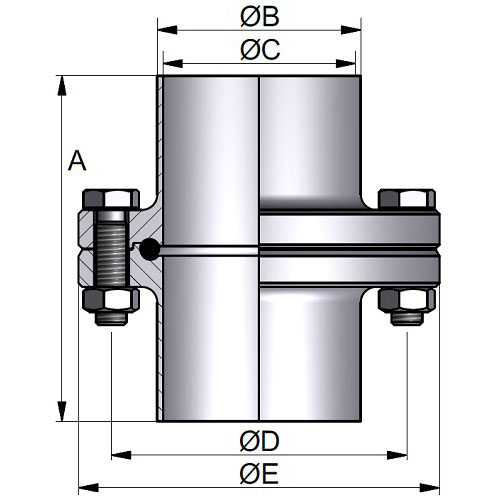

Artikel | Omschrijving | DN | A | B | C | D | E | Bestel | |
106590108000CS | Flensverb. ConnectS DN10 DIN | DN10 | 88.0 | 13.0 | 10.0 | 45.0 | 65.0 | ||
DN DN10 A 88.0 B 13.0 C 10.0 D 45.0 E 65.0 Aseptische Flenskopp. DN10 | |||||||||
106590158000CS | Flensverb. ConnectS DN15 DIN | DN15 | 88.0 | 19.0 | 16.0 | 55.0 | 75.0 | ||
DN DN15 A 88.0 B 19.0 C 16.0 D 55.0 E 75.0 Aseptische Flenskopp. DN15 | |||||||||
106590208000CS | Flensverb. ConnectS DN20 DIN | DN20 | 92.0 | 23.0 | 20.0 | 60.0 | 85.0 | ||
DN DN20 A 92.0 B 23.0 C 20.0 D 60.0 E 85.0 Aseptische Flenskopp. DN20 | |||||||||
106590258000CS | Flensverb. ConnectS DN25 DIN | DN25 | 102.0 | 29.0 | 26.0 | 70.0 | 97.0 | ||
DN DN25 A 102.0 B 29.0 C 26.0 D 70.0 E 97.0 Aseptische Flenskopp. DN25 | |||||||||
106590328000CS | Flensverb. ConnectS DN32 DIN | DN32 | 102.0 | 35.0 | 32.0 | 78.0 | 105.0 | ||
DN DN32 A 102.0 B 35.0 C 32.0 D 78.0 E 105.0 Aseptische Flenskopp. DN32 | |||||||||
106590408000CS | Flensverb. ConnectS DN40 DIN | DN40 | 106.0 | 41.0 | 38.0 | 85.0 | 115.0 | ||
DN DN40 A 106.0 B 41.0 C 38.0 D 85.0 E 115.0 Aseptische Flenskopp. DN40 | |||||||||
106590508000CS | Flensverb. ConnectS DN50 DIN | DN50 | 106.0 | 53.0 | 50.0 | 95.0 | 125.0 | ||
DN DN50 A 106.0 B 53.0 C 50.0 D 95.0 E 125.0 Aseptische Flenskopp. DN50 | |||||||||
106590658000CS | Flensverb. ConnectS DN65 DIN | DN65 | 130.0 | 70.0 | 66.0 | 115.0 | 145.0 | ||
DN DN65 A 130.0 B 70.0 C 66.0 D 115.0 E 145.0 Aseptische Flenskopp. DN65 | |||||||||
106590808000CS | Flensverb. ConnectS DN80 DIN | DN80 | 130.0 | 85.0 | 81.0 | 125.0 | 155.0 | ||
DN DN80 A 130.0 B 85.0 C 81.0 D 125.0 E 155.0 Aseptische Flenskopp. DN80 | |||||||||
106591008000CS | Flensverb. ConnectS DN100 DIN | DN100 | 134.0 | 104.0 | 100.0 | 150.0 | 180.0 | ||
DN DN100 A 134.0 B 104.0 C 100.0 D 150.0 E 180.0 Aseptische Flenskopp. DN100 | |||||||||
106600128000CS | Flensverb. ConnectS 1/2" ASME | ½" | 88.0 | 12.7 | 9.4 | 45.0 | 65.0 | ||
DN ½" A 88.0 B 12.7 C 9.4 D 45.0 E 65.0 Aseptische Flenskopp. 1/2" ASME | |||||||||
106600348000CS | Flensverb. ConnectS 3/4" ASME | ¾" | 88.0 | 19.05 | 15.75 | 55.0 | 75.0 | ||
DN ¾" A 88.0 B 19.05 C 15.75 D 55.0 E 75.0 Aseptische Flenskopp. 3/4" ASME |
